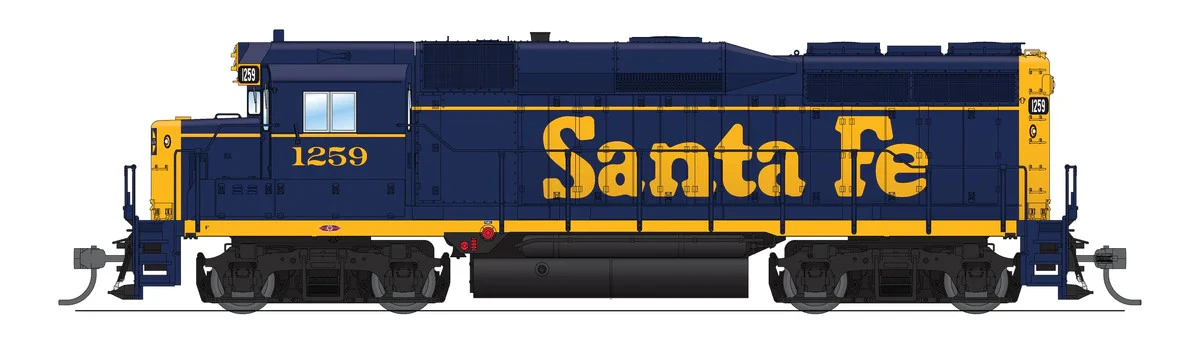

Broadway Limited 9130 – EMD GP30 (DCC And Sound) Atchison, Topeka And Santa Fe (ATSF) 1259 – HO Scale

The EMD GP30 is a 4-axle diesel-electric locomotive built by General Motors Electro-Motive Division between July 1961 and November 1963. A total of 948 units were built for railroads in the United States and Canada. The GP30’s were designed to compete with GE’s U25B. The U25B offered 2500 horsepower, while the existing EMD GP20 was only rated at 2,000 hp. The EMD’s engineering department ended up using a 16 cylinder 567D3 engine that produced 2250 hp for the GP30. They also made several improvements on the GP20 design meant to match the U25B – a sealed airtight long hood, a single central air intake, and easier access for maintenance. These changes required more space behind the cab, and this was achieved vertically by raising the height of the locomotive, providing space for the central air system, the turbocharger, and electrical cabinet. This increased height meant a new body was required. EMD wanted the new body to be modern and updated, so the GM Automotive Styling Center created the GP30’s unique “hump” and cab roof profile. In our second production, we are modeling seven railroads and nine distinct paint schemes, 2 of which are fantasy paint schemes. All models with prototypically accurate road numbers and paint schemes. Each model has our newest Paragon4 Sound/DC/DCC control system featuring Rolling Thunder, and equipped with integral GoPack capacitor packs.

All of our models have road-specific details and lighting.

List of individually controllable lights in our EMD GP30 models:

– Headlight

– Rear Light

– Numberboard Lights (Front & Rear)

– Front Classification Lights

– Rear Classification Lights

– Cab Light

– Mars Light (where appropriate)

-Rotary Beacon (where appropriate)

– Ditch Lights (where appropriate)

– Road-specific detail options that are prototypically accurate for each road name:

– Truck sideframes

– Dynamic brake hatch

– Roof fan arrangement and type

– Short hood detail arrangement

– Long hood end detail arrangement

– High short hood option where accurate

– Horn type and location

– Bell location

– Front pilot details

– Rear pilot details

– Cut level details

– MU receptacle arrangement

– Sunshade options

– Antenna type and location

– Wind deflector type Industry-leading Model Features:

– Paragon4 Sound & Control System featuring ROLLING THUNDER

– Integral Dual-Mode Decoder with Back EMF for Superb Slow Speed Operation in DC and DCC

– Precision Drive Mechanism Engineered for Heavy Towing and Smooth Slow Speed Operation

– All Wheel Electrical Pick-up

– ABS Body with Die Cast Chassis for Maximum Tractive Effort – Premium Caliber Painting

– Prototypically Accurate Paint Schemes and Road Numbers

– Many Separately Applied Details such as Handrails, Grab Irons, Horn, Bell, Wipers, and Etched Metal Grills

– Prototypical Light Operation

– accurate for each paint scheme

– Prototypically Accurate Sounds for the EMD GP30 Diesel Locomotive

– Metal Kadee-compatible Couplers (2)

– Will Operate on Code 70, Code 83, and Code 100 Rail

– Minimum Operating Radius: 18 inches

Broadway Limited Imports is proud to introduce Paragon4: The new benchmark for premium HO sound-equipped locomotives. These DC and DCC-Sound equipped locomotives feature the ALL-NEW Paragon4 sound and control system. Each Paragon4 locomotive comes with BLI’s own integral DCC Decoder factory installed. Paragon4 locomotives offer Dual Mode DC and DCC operation with superb back EMF motor control, improved DC motor control, built-in capacitor pack for more reliable electrical pick-up, industry best on-board sound with Rolling Thunder functionality, Pro Lighting Mode for prototypical light control, Switcher model for precise low speed control, recordable DCC operation for automated playback, and the same excellent detail level as Broadway Limited’s Paragon3 Series models.
